Cone crusher is a popular crusher in the mining machinery industry. It has a particularly strong crushing capacity for high-hard materials. It has the characteristics of high wear resistance and high crushing efficiency. What are the type of 100tph cone crusher? What are the specific characteristics?

100TPH cone crushers belong to small and medium-sized crushers. The models that meet the requirements are mainly fixed cone crushers, GPY100, HPY200, and HPY300. The relevant parameters are as follows:

The diameter of the big end of GPY100 cone crusher is 600mm, the maximum feeding size is 200mm, the width of the discharge port is between 8-20mm, the output range per hour is between 45-100t, and the motor power is 8P 90KW;

The diameter of the big end of HPY200 cone crusher is 1200mm, the maximum feeding size is 150mm, the width of the discharge port is between 6-10mm, the output range per hour is between 60-115t, and the motor power is 8P 160KW;

The diameter of the big end of HPY300 cone crusher is 1750mm, the maximum feeding size is 180mm, the width of the discharge port is between 6-10mm, the output range per hour is between 75-140t, and the motor power is 8P 220KW.

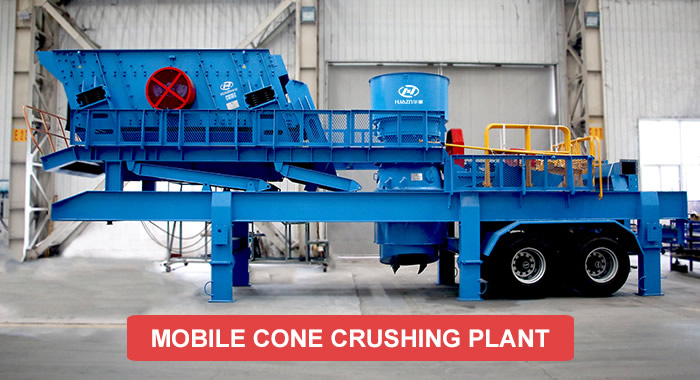

100TPH cone crusher can also choose a mobile cone crusher. The whole machine is highly mobile and does not require complicated installation and piling process, so it is especially suitable for stone processing with high fluidity. There are two main types of mobile cone crushers with an output of 100 tons per hour, one is a tire type cone crusher and the other is a crawler type cone crusher. The tire-type crusher belongs to the hanging type and semi-automatic crusher. It needs to be pulled by the head of the truck when driving on the road. The field area is often replaced on flat roads such as cities and suburbs. The crawler type belongs to the fully automatic crusher. , The degree of intelligence and automation is stronger, but relatively speaking, the price is also higher. Often used on hillsides and rough roads, it has strong power and is suitable for climbing operations.
