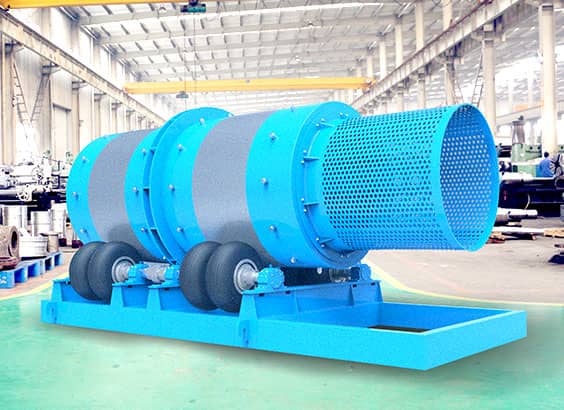

ZM Series Slag Steel Autogeneous Mill

Autogeneous Mill

Mesh Size: 30-50 （1-10）[mm]

Max. Feed Size: 50 (mm)

Application Fields: domestic and overseas steel plant

Applied Material: separate slag and steel, remove the bounding residue on the small casting pieces

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

This series product is mainly used in autogenously grinding and separating slag and steel to improve the production and grading. It also can be used in foundry works to remove the bonding residue on the small casting pieces' surface, etc.

Features

1. Low installed power of equipment for energy saving, simplestructure for easy installation.

2. Instead of medium, this machine depends on the strike between materials themselves to realize the seperation.

3. Unique tube struture ensures small diacharge granuality and thus high productivity.

Working Principle

The grinder uses the materials to be ground as the media, through mutually impacting and grinding to realize crushing. Tube mill: Inside the cylinder, there are some grinding media. Under the friction force and centrifugal force, the media and materials feed into the cylinder are lifted to a certain height with the cylinder rotating around the horizontal axis. If their gravity are large than the centrifugal force, the materials will drop down, and to be crushed by the impacting force. At the same time, the movement between the grinding media also has the function of grinding for the materials during the rotation process.

Parameter

Model		ZM250	ZM2560	ZM3040	ZM3060
Barrel (mm)	Diameter	2500	2500	3000	3000
Barrel (mm)	Length	4000	6000	4000	6000
Rotate speed of barrel(r/min)		17-24	17-24	17-20	17-20
Max feed size(mm)		300（40）	300（40）	300（50）	300（50）
Max feed temperature( 0C)		50	50	50	50
Mesh Size (mm)		30-50（1-10）	30-50（1-10）	30-50（1-10）	30-50（1-10）
Capacity (t/h)		17-25	20-30	25-35	30-40
Inclination angle of barrel (°)		0-2	0-2	0-2	0-2
Power (kw)		110-132	160-200	160-220	250-280
Dimension (mm)		7800×4900×4800	8600×4700×5800	7300×4700×5600	9300×4500×5400
Weight (kg)		53400	73608	67957	98600
