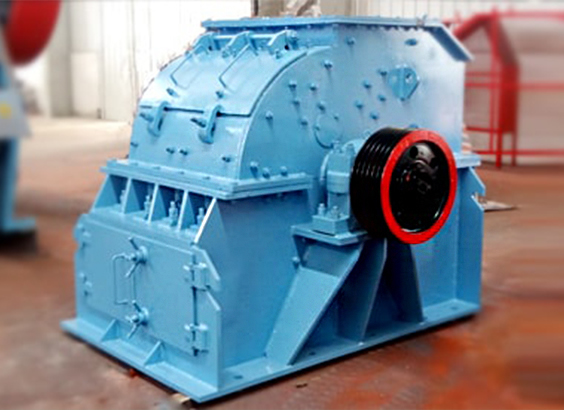

PC Series Hammer Crusher

Feed Size: 50-350mm

Discharge Size: 0.3-43 m³/h

Application Fields: cement, construction, metallurgy, electric power.

Applied Material: limestone, coke, coal

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

PC series is a hammer series which mainly rely on the impact motion of rotating hammer in hign speed and materials inside. It features in simple structure, high crushing ratio, high efficiency and so on. Generally this series can be applied on dry crushing and wet crushing. Besides, the distance between gird sections, discharge size all can be altered at user's will.

Features

1. Adopting new technology, the working hammer is designed has features of reliable wear-resistance and impact resistance.

2. The distance between gird sections, discharge size all can be altered at user's will.

3. The sealed structure has solved the problem of dust pollution and ash leakage in the crushing plant.

4. Scientifically rational sructure design ensures reliable running, low consumption of wearing parts and operation cost.

Working Principle

The electromotor drives the rotor to rotate at high speed, when the materials are fed into the crushing chamber, they are crushed by impacting, cutting, hitting and grinding from the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate, the crushed materials with smaller size than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retain on the sieve plate for further hitting and grinding by the hammer until they are crushed to the required granularity, and then discharged from the sieve plate

Parameter

Specification	Feed Size（mm）	Discharge Size（mm）	Capacity（m3/h）	Power（kw）	Dimension （mm）	Weight（kg）
PCφ400×175	＜50	＜3	0.3
PCφ600×400	＜100	＜15	7	15	1000×980×1120	1445
PCφ600×600	＜100	＜15	9	37	2245×1160×970	3100
PCφ600×1200	＜350	＜25	18	37	3000×1700×1180	3750
PCφ800×600	＜200	＜10	15	55	1234×1360×1120	3480
PCφ800×800	＜200	＜15	20	75	1432×1360×1120	4100
PCφ1000×800	＜200	＜15	30	115	1500×2230×1515	6700
PCφ1000×1000	＜200	＜15	43	130	3690×2230×1515	8652
PCφ1250×1250	＜200	＜20	62	180	2424×2280×1942	14000
PCφ1400×1400	＜250	＜20	106	280	5306×3440×2475	32000
PCφ1600×1600	＜350	＜20	156	480	5800×3780×2700	37500
