PFQ Series Vortex Strong Impact Crusher

PFQ Series Impact Crusher

Processing Capacity: 50-1000TPH

Max. Feeding Size:300-700mm

Application Fields: cement, construction, chemistry, highway and railway.

Applied Materials: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin,etc.

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: [email protected]

Description

PFQ Series Vortex Strong Impact Crusher is a newly developed series impact crusher with high efficiency. It has smart structure and can be applied to primary crushing, secondary and fine crushing of a variety of materials with compression strength less than 250Mpa. PFQ impact crusher can be widely used for sand and aggregate processing in water conservancy and hydropower projects and other infrastructure constructions, such as highway, high-speed rail, building materials, mining and urban construction waste treatment.

Application of Impact Crusher

1.For limestone, granite, quarry stones, rocks, aggregate, basalt, gold ore, iron ore, etc.

2.Common final output size:0-10mm, 10-20mm, 20-30mm, 30-40mm, etc.

3.Hot sale capacity:60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, etc.

★Impact crusher adopts new manufacturing technology and structural design, and the finished product is cubic, free of tension and cracks, with excellent final particle shape.

Features

1. Specially designed three crushing chambers, which improves the production capacity of PFQ impact crusher, makes the feed size bigger and the product shape better.

2. The optimally designed rotor provides powerful rotational inertia and strong impact force of hammer head, which improves the productivity and increases the crushing ratio.

3. Specially designed anti-wear alloy C shape hammer keeps the shape of impact face in product life cycle. It ensures that the product shape and particle size distribution is very stable.

4. Standard modular designed liner and tooth impact plate of PFQ impact crusher have common-ability and interchangeability, which improve the utilization ratio and prolong the service life of PFQ impact crusher.

5. Special hammer fitting structure improves hammers' stability and convenient dismounting, it also greatly improve the work efficiency.

6. The discharging opening size of the machine can be adjusted according to the requirement of product size and particle size distribution.

7. The standard hydraulic lifting device will be provided with the machine. It is optional to supply special lifting tools for replacing hammers, which is flexible and can be easily maintained.

Working Principle

Electrical motor drives through V-belts and makes the rotor run at high speed. Materials will be fed into the crushing chamber from feed inlet, and be struck by the plate hammer which rotates at high speed. The materials are thrown up to the dentate reaction plate on the top of the crushing chamber and then falls down, the thrown-up and falling-down materials are crushed by striking with each other. The big incompletely crushed materials will form big stress and bending force at the interaction of hammer and thick impact plate in P crushing chamber, even the hard crushed materials will be broken and enter into the following S and T crushing chamber. The materials in these two crushing chambers can be medium and fine crushed by striking, impacting, bending and extruding, then discharged out of the machine.

Parameter

Model	Max. Feed Size(mm)		Discharge Size (mm)	Capacity (t/h)	Power (kw)
Model	<150MPa	<250MPa	Discharge Size (mm)	Capacity (t/h)	Power (kw)
PFQ1108	300	150	30	50~100	75
PFQ1110	400	200	35	80~150	110
PFQ1310	400	200	40	140~200	160
PFQ1313	400	250	40	180~260	200
PFQ1315	400	300	40	200~300	250
PFQ1320	400	300	40	300~400	2×160
PFQ1520	500	400	40	350~550	2×250
PFQ1623	700	400	40	600~780	2×355
PFQ1823	700	400	40	650~1000	2×400

Remark: The production capacity listed in the table is based on limestone with the loose density 1.6/m³. The feed should be moderate. If the feed is too big, it will reduce the capacity and increase the wear.

Structure

PFQ impact crusher

Machine Photo

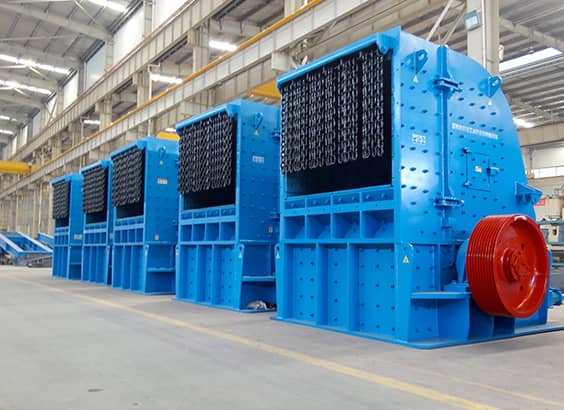

pfq impact crusher 1

pfq impact crusher 2

impactor crusher

impact crusher price

Customer Cases

Road Reconstruction Project in East Timor

The main equipment: ZSW490×110 feeder, C1008 jaw crusher, PFQ1313B impact crusher, 3YA2460 vibrating screen、DXS3.2A sand washer and complete set of automatic control system.

2000t/h Limestone Production at Mengzi Country, Yunnan Province.

The main equipment: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen
