Self Centering Vibrating Screen
Max. Feed Size: 200 (mm)
Processing Capacity: 50-450 (t/h)
Application Fields: construction, metallurgy, coal, chemical industry.
Applied Material: it is suitable for all kinds of materials
Description
Self Centering Vibrating Screen is applied on screening and classification of materials, widely used in metallurgical, chemical, coal, building materials and other industries.
Features
1. Excellent loose and layering degree of materials after vibration on screen.
2. The balance weight and amplitude of vibrating screen can be adjusted according to production demand.
3. The amplitude can change along with the feeding amount.
Parameter
Model | Layer | Mesh Size (mm) | Double Amplitude (mm) | Vibrating Frequency (r/min) | Max. feed size (mm) | Capacity (t/h) | Power (kW) |
SZZ9018 | 1/2 | 10-50 | 6 | 1017.5 | 80/40 | 50 | 2.2/2.2 |
SZZ1225 | 1/2/3 | 6-100 | 5-8 | 850 | 100 | -150 | 5.5/5.5/7.5 |
ZD1230 | 1 | 6-100 | 6-7 | 850 | 300 | 80-300 | 7.5 |
ZD1236 | 2/3 | 6-100 | 6-7 | 850 | 200 | 90-270 | 7.5/11 |
ZD1240 | 2/3 | 6-100 | 6-7 | 850 | 200 | -250 | 7.5/11 |
ZD1530 | 1/2/3 | 6-100 | 6-7 | 850 | 200 | 90-270 | 5.5/7.5/15 |
YA1536 | 1/2/3 | 6-100 | 6-8 | 850 | 200 | 100-350 | 7.5/11/15 |
YA1236 | 3 | 6-100 | 5-7 | 850-920 | 200 | 80-280 | 11 |
YA1545 | 2/3 | 6-100 | 7-9 | 750 | 200 | 80-450 | 15/22 |

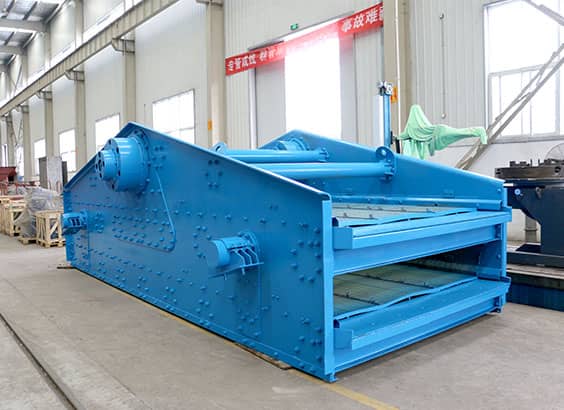

Machine Photo
