XL Series Spiral Sand Washer
Spiral Diameter: 508-1118(mm)
Feed Size: 10-75(mm)
Processing Capacity: 20-300(t/h)
Application Fields: metallurgy, construction material, hydropower
Applied Material: fine and coarse grain
Description
XL Series Spiral Sand Washer is an efficient desliming, sand washing and stone washing equipment, which is widely used for sand and aggregate washing,grading, removing impurity in highway, railway, construction, building materials, water and electricity industries and so on.According to the amount of washing materials, XL spiral sand washer can be divided into two kinds of structure, single spiral and double spiral. It also can be divided into two kinds, light and heavy, according to the product size of washing materials.
Light spiral sand washer is suitable for washing and screening of fine materials,which is less than 10 mm. Heavy spiral sand washer is suitable for coarse materials, which is more than 10 mm less than 80 mm.
Screw Sand Washing Machine has three functions: washing, dewatering, classifying and is loved by the majority of customers, and has been successfully widely used in construction sites, gravel plants, hydropower stations, concrete dam site glass industry, and other places using sands.
Features
1. Adjustable wide overflow weir structure makes desliming, dehydration, removing impurity and sand washing more efficient.
2. The machine are equipped with reliable driving and transmission device, special underwater seal structure of the rotary part, which ensure running stable.
3. The spiral blades are made of wear-resistant materials, which ensure working continuity and reduce the running cost.
Parameter
Type | Model |
Spiral diameter (mm) |
Feed size (mm) |
Water Consumption(t/h) | Capacity(t/h) | Power(kw) | Dimension(mm) |
Light single spiral | XL-508 | 508 | <10 | 6-60 | -20 | 7.5 | 8585×2347×1615 |
XL-610 | 610 | <10 | 6-63 | -50 | 7.5 | 8166×2480×1720 | |
XL-762 | 762 | <10 | 9-63 | -75 | 15 | 9070×2650×1870 | |
XL-914 | 914 | <10 | 10-90 | -100 | 15 | 9310×2830×2360 | |
XL-1118 | 1118 | <10 | 20-160 | -175 | 22 | 11830×3048×2230 | |
Light double spiral | 2XL-762 | 762 | <10 | 20-150 | -140 | 2×15 | 9178×3625×1808 |
2XL-914 | 914 | <10 | 130-180 | -200 | 2×15 | 9310×3870×2134 | |
2XL-1118 | 1118 | <10 | 60-600 | -350 | 2×22 | 11830×4170×2230 | |
Heavy single spiral | XLZ-762 | 762 | <60 | 160-220 | -125 | 30 | 7775×1290×2034 |
XLZ-914 | 914 | <60 | 200-300 | -175 | 37 | 8324×1382×2112 | |
XLZ-1118 | 1118 | <75 | 500-750 | -250 | 37 | 8703×1681×2176 | |
Heavy double spiral | 2XLZ-762 | 762 | <60 | 300-400 | -150 | 2×30 | 7775×2090×2068 |
2XLZ-914 | 914 | <60 | 350-450 | -200 | 2×30 | 8324×2336×2112 | |
2XLZ-1118 | 1118 | <75 | 900-1100 | -300 | 2×37 | 8703×2861×2150 |

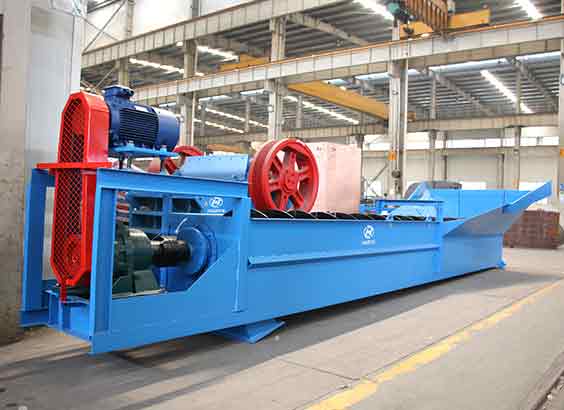

Machine Photo
Customer Cases
