AF Series Hydraulic Cone Crusher
Model: AF36、AF45、AF60
Throughput: AF36 (125-150mm) , AF45 (215-265mm), AF60 (475-555mm)
Application fields: mining, smelting, construction material, highway, railroad, water conservancy, chemical industry.
Applied material: iron ore, copper ore, limestone, quartz stone, granite, sandstone.
Description
AF series cone crusher is a kind of high-efficient fine cone crusher that manufactured by our compan. It applied the advanced laminated crushing technique at present and can substitute for impact crusher to obtain the even, fine grain without influence of material properties. So AF cone crusher achieves the epochal crushing capacity. The optimal eccentric distance, discharge opening and automatic, steady feeding make the material to be laminating crushed in the special designed crushing chamber. AF cone crusher has features such as big throughput, high product yield, good product shape, easy operation and steadily running etc. Furthermore, it is very quick and convenient to change the wearable parts, and it is very simple to adjust the discharging outlet. AF cone crusher has two kinds of systems for users to choose: Manual operation system and PLC automatic control system.
Features
1. Special crushing cavity is designed adopting laminating crushing theory. In the effective crushing segment can form a high density layer which guarantees fine particle size, good shape and handsome output.
2. Automatic operating system to ensure a smooth and high-efficient running of AF cone crusher.
3. To eject the foreign-body by itself.
4. The equal feeding device is able to avoid the deviation of lining and at the same time detect material level by which the feeding materials spread uniformly along the circle.
Parameter
Specification
|
AF36
|
AF45
|
AF60
|
||||
Feed size
(mm)
|
Mesh size(mm)
|
Throughput(t/h)
|
Mesh size(mm)
|
Throughput(t/h)
|
Mesh size(mm)
|
Throughput(t/h)
|
|
max
|
min
|
5 13 20 30
|
5 13 20 30 40
|
13 20 30 40
|
|||
100
|
0
|
35 70 95 130
|
150
|
60 105 140 195 250
|
260
|
155 195 275 355
|
555
|
20
|
35 65 85 115
|
145
|
60 100 130 170 215
|
220
|
150 195 255 320
|
485
|
|
80
|
0
|
40 75 105 145
|
150
|
60 110 155 220 260
|
265
|
160 205 300 405
|
575
|
20
|
35 70 90 120
|
130
|
60 105 140 185 210
|
215
|
155 205 275 350
|
475
|
|
60
|
0
|
45 85 125
|
150
|
65 125 185 260
|
265
|
|
|
13
|
40 75 105
|
125
|
60 115 155 215
|
225
|
|
|
|
20
|
40 70 100
|
125
|
60 110 150 205
|
|
|
|
|
Power(kw)
|
132
|
220
|
315
|

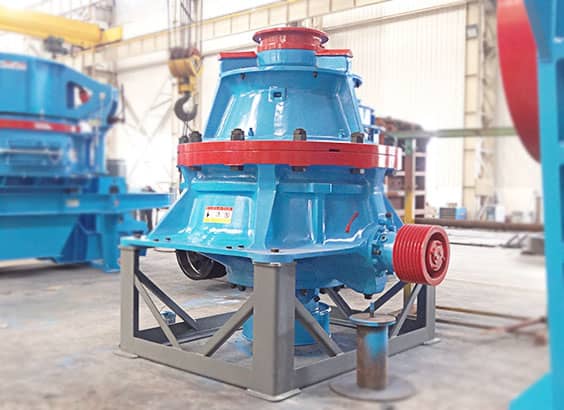

Machine Photo
