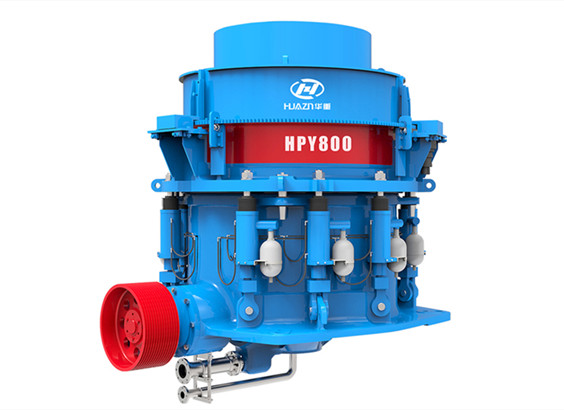

HPY Multi-cylinder Hydraulic Crusher

HPY Multi-cylinder Hydraulic Cone Crusher

Processing Capacity: 60-1100 TPH

Max. Feed Size: 0-350 mm

Output size: 6-51 mm

Applied Material: Granite, diabase, basalt, pebble, limestone, dolomite, ores,etc.

Application Fields: mining, metallurgy, construction material.

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: [email protected]

Description

HPY Series Multi-cylinder Hydraulic Cone Crusher is one of advanced cone crushers in China, which is developed and manufactured by our company. The machine is one kind of high-class product combined with mechanical technology, electrical technology, hydraulic technology and advanced crushing technology. HPY cone crusher adopts high strength casting-steel frame, alloy forging main shaft and high precision straight bevel gear driving structure, combined with multi-chambers selection and automation control system, which fulfills the performance and advantages. HPY cone crusher can be widely used in secondary and fine crushing work for all kinds of hard materials and rocks to meet customers' various needs for crushing.

Application of Hydraulic Cone Crusher

1.For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

2.Common final output size:0-10mm, 10-20mm, 20-30mm, 30-40mm, etc.

3.Hot sale capacity:60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, 500-600 etc.

★ We have single/multi-cylinder hydro cone crushers for sale, full models for choice, meeting your different needs.

Features

High Productivity

HPY cone crusher combined with the optimal crushing chamber, large eccentricity, the optimal swing frequency and the laminating crushing principle, which makes the performance of HPY cone crusher more stability, getting more greater throughput, higher productivity and better products shape.

High Load Capacity

Optimization design of strong frame and high strength of fixed shaft structure, unique hydrodynamic lubrication design of copper bush, smart and reliable overload protection system.

Automation

Automation control system can achieve the overloading protection, iron protection, discharging opening adjustment and cavity clearing , can can also constantly monitor the cone crusher conditions such as oil temperature, oil pressure, motor load and discharge opening,etc..

Wide Applicability

HPY series cone crusher has two types: standard type and short head type. There are several of chambers can be chosen for each type. The chamber of cone crusher can be changed by changing liner, pulley and adapter ring to meet requirement of different production process and application.

Low Installation Cost

Integral steel base frame ensures easy installation, short time-cost and minimum installation cost of HPY series cone crusher.

Working Principle

When the HPY hydraulic cone crusher works, electric motor drive the belt pulley or the gear shaft to rotate, drive shaft and cone body make the eccentric shaft periodically oscillating and rotating around the center axis. After the material enter into the crushing chamber, they are continuously striking, grinding and squeezing under the interaction of eccentric shaft and concave until the material reach the required granularity, and then discharged from the lower outlet.

Parameter

Model	Max.Motor Power（kw）	CSS（mm）/Capacity（t/h）
Model	Max.Motor Power（kw）	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	45mm	51mm
HPY200	160	75-95	70-90	85-115	115-145	135-175	145-185	155-195	165-215	185-230	205-245
HPY300	220	60-75	100-130	110-140	145-180	170-215	190-230	220-260-	225-275	245-320	300-375	345-430
HPY400	315		105-140	135-170	180-225	215-275	250-320	275-345	285-370	315-425	350-480	400-540	455-615
HPY500	400		135-170	170-220	225-290	270-345	310-400	340-425	360-450	400-530	425-585	500-670	560-770
HPY600	450			210-305	280-385	330-450	365-485	415-535	435-570	440-635	515-705	575-790
HPY700	500			220-325	300-405	350-485	400-520	465-590	490-620	550-690	605-755	685-860	780-975
HPY800	630			240-335	315-420	375-500	420-540	500-650	550-750	650-850	585-920	670-990	765-1100
HPY1000	750			540-610	600-750	660-820	730-920	790-1050	850-1230	1100-1480	1350-1780	1600-2120	1850-2500
HPY1250	1000			597-710	775-925	845-1025	910-1135	1025-1385	1150-1520	1460-1885	1725-2195	2010-2615	2295-3035

Remark: The capacity above is subject to limestone with density 1.6t/m³ under the condition of open-circuit, which is 15-30% lower than it under the condition of closed-circuit.

Structure

HPY cone crusher

Machine Photo

cone crussher machine

cone crusher manufacturer

cone crusher machine

cone crusher price

Customer Cases

570 t/h Limestone Crushing and Grinding Production Line at Szechwan Province, China

The main equipment: HPY400 cone crusher、YKR3073 vibrating screen、FC1500 spiral classifier and electrical system.

200 t/h Gravel Crushing Plant For Construction Aggregates at Tibet

The main equipment: ZSW4211 vibrating feeder、ASD3625 jaw crusher、HPY300 cone crusher、3YK1860 vibrating screen、4YK2460 vibrating screen、XL762 sand washer.
