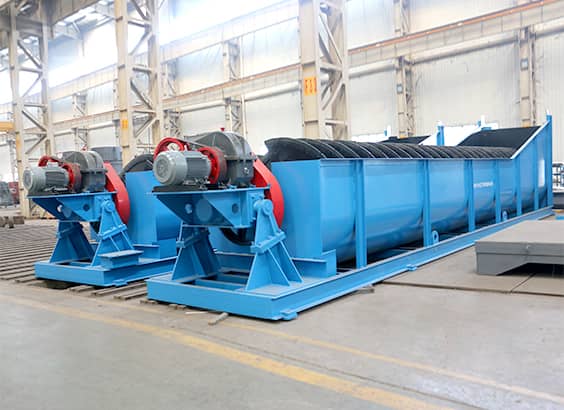

FC & FG Spiral Classifier

Spiral Diameter: 500-3000（mm）

Flume Length: 4500-14300（mm）

Processing Capacity (t/h): 1. Return sand: 8-3.2 2. Overflow: 32-1414

Applied Material: ore with overflow granularity 0.83mm-0.07mm

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

FC and FG Series Spiral Classifier is mainly used in pre-classification and examination classification of grinding circuit in concentration plant and aggregate plant as well as desliming and dehydration in the process of sand washing. It can be classified into single spiral and double spiral according to the spiral quantity; and high weir type and sinking type according to the different depth of blade dipping into overflow surface. The former one can be used in classification of ore and sand washer with overflow granularity 0.83-0.15mm, and the other one in classification of ore and fine powder with overflow granularity 0.15-0.07mm. The machine has features of reliable performance, stable operation, excellent sand washing and classifying. The machine is used to control the loss amount of powder for sand washing in the aggregate system.

Features

1. This classifier adopts sealing immersed bearing.

2. Independent hoisting equipment with strong reshipment power

3. Wearable liner of bolt installed to prolong the service life.

4. Cell body in long and narrow shape can reach a good mixing effect and prolong the suspension time of materials.

5. Single spiral and double spiral type can be selected in line with your actual need.

Working Principle

Spiral classifier adopts the principle that the settling rate of solid grain is different because of its different size and different proportion. The fine ore grains float in the water and drain out with overflow, the coarse ore grains sink in the bottom of chute. The spiral classifier filters the grain and powder that are grinded from the grinder, and then the spiral pieces rotate the coarse materials into the feeding mouth of grinder, the filtered fine materials are discharged from the overflow pipe.

Parameter

Style	Model	Spiral Dia.(mm)	Flume Length(mm)	Speed(r/min)	Capacity(t/d)		Flume gradient (°)	Power(kw)		Dimension(mm)
Style	Model	Spiral Dia.(mm)	Flume Length(mm)	Speed(r/min)	Return sand	Overflow	Flume gradient (°)	Drive motor	Winding motor	Dimension(mm)
High weir spiral classifier	FG500	φ500	4500	8-12.5	135-210	32	18	1.5		6409×712×1599
	FG750	φ750	5500	6.0-10.0	340- 570	65	14-18.5	3.0		7100×990×1450
	FG-1000	φ1000	6500	5.0-8.0	650-1080	110	14-18.5	7.5		8084×1424×2503
	FG-1200	φ1200	6500	5.0-8.0	1170-1870	155	14-18.5	7.5	0.4	8195×1574×2747
	FG-1500	φ1500	8300	4.0-6.0	1830-2740	235	14-18.5	11	0.4	9818×1976×3703
	FG-2000	φ2000	8400	3.0-3.5	3240-5400	400	14-18.5	11	2.8	10200×2530×4486
	FG-2400	φ2400	9200	2.5-4.0	4650-7450	580	14-18.5	11-15	2.8	11000×2930×5690
	2FG-1200	φ1200	6500	5.0-8.0	2340-3740	310	14-18.5	5.5×2	0.4×2	8686×2802×3101
	2FG-1500	φ1500	8300	4.0-6.0	4650-7450	470	14-18.5	7.5×2	0.4×2	9818×3506×3703
	2FG-2000	φ2000	8400	3.0-5.5	2340-3740	800	14-18.5	44×2	2.8×2	10200×4610×4486
	2FG-2400	φ2400	9200	2.5-4.0	3660-5480	1160	14-18.5	15×2	2.8×2	11000×5430×5690
	2FG-3000	φ3000	12500	2.5-4.0	6480-10800	1785	14-18.5	18.5×2	4×2	14500×6630×6350
Sinking type spiral classifiers	FC-1000	φ1000	7600	5.0-8.0	9300-14900	85	14-18.5	7.5	0.4	9190×1506×3101
	FC-1200	φ1200	8400	5.0-8.0	14600-23400	120	14-18.5	7.5	0.4	9384×1846×3277
	FC-1500	φ1500	10500	4.0-6.0	675-1080	185	14-18.5	11	0.8	12068×1976×4305
	FC-2000	φ2000	12900	3.0-3.5	1170-1870	320	14-18.5	11-15	2.8	14700×2530×5343
	FC-2400	φ2400	14200	2.5-4.0	1830-2740	455	14-18.5	11-18.5	4.0	13000×2930×6885
	2FC-1200	φ1200	8400	5.0-8.0	2340-5940	240	14-18.5	7.5×2	0.4×2	10000×3700×4190
	2FC-1500	φ1500	10500	4.0-6.0	3660-5480	370	14-18.5	7.5×2	0.8×2	10588×3506×4035
	2FC-2000	φ2000	12900	3.0-5.5	6480-11800	640	14-18.5	15×2	2.8×2	14700×4610×5343
	2FC-2400	φ2400	14200	2.5-4.0	9300-14900	910	14-18.5	18.5×2	4×2	13000×5430×6885
	2FC-3000	φ3000	14300	2.0-3.2	14600-23400	1410	14-18.5	22×2	4×2	16200×6630×8680
