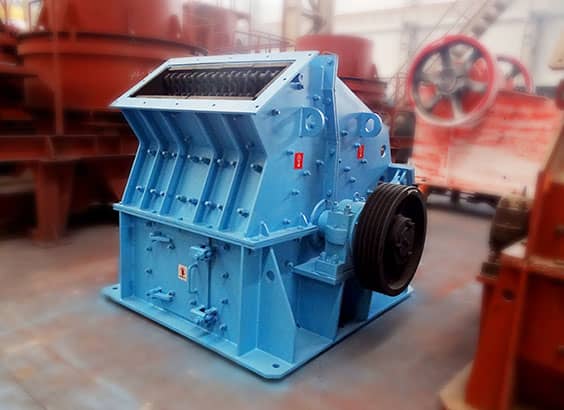

PFW Horizontal Compound Crusher
Feed Size: 35-60 (mm)
Processing Capacity: 20-150 (t/h)
Application Fields: mining, construction, metallurgy, cement, chemical industry
Applied Material: limestone, dolomite, granite, basalt, blast furnace slag, etc.
Description
PFW series horizontal compound crushers are adjustable fine crushing equipments without grizzly bars. They feature in large crushing ratio, low consumption, even running and convenient for maintenance.
Features
1. The crushing ratio is up to 15%.
2. Simple structure and low costs and much less worn by adopting the principle of stone to stone crushing.
3. The granularity can also be changed without influence by abrasion of hammer and lining.
4. Non grizzly bar, high water content to avoid blocking.
5. Horizontally placed bearing lasts a longer service life.
6. The special design of rotor avoids wear and tear.
7. Lead screw and hydraulic opening deveice are mounted to the hind cavity which helps to replace wearing parts.
Parameter
|
Specification
|
PFW0805
|
PFW0808
|
PFW1010
|
PFW1210
|
PFW1212
|
|
Feed Size（mm）
|
＜35
|
＜35
|
＜40
|
＜60
|
＜60
|
|
Discharge Size（mm）
|
＜5（20～50%）
|
＜5（20～50%）
|
＜5（20～50%）
|
＜5（20～50%）
|
＜5（20～50%）
|
|
Capacity（t/h）
|
20-40
|
35-50
|
45-75
|
70-100
|
90-150
|
|
Power（kw）
|
45
|
55
|
90
|
132
|
160
|
|
Outline Dimension（mm）
|
1830×1630×1300
|
1830×1860×1300
|
2240×2280×1650
|
2600×2790×2100
|
2600×3040×2100
|
