Mobile Crushing Plant
Description
Tyre Mobile Crushing Plant is a whole set crushing and screening line. It is formed by placing all the relevant crushing equipments together on one or several pull-type or wheel-type trailer. such as material silo, vibrating feeders, primary crushing equipments, multilayer vibrating screen, secondary and fine crushing equipments, conveyors, sand washers, electrical apparatus control system,etc.
Features
1. Mobile crushing plant is convenient to do transportation and transition applying standard wheel, axis and steering shaft.
2. Flexible configuration meet the different projects need, it can be divided into primary crushing stage, secondary crushing stage and fine crushing stage, three stages crushing system can work independently.
3. Every crushing stage is mobile and flexible combination with features of light weight, short length, well-adapted and flexibility.
4. Multi-function vehicle equipment with features of high performance, high efficiency and reliable.
5. Complete and easy to install, it can start production after connect the power.
6. Simple operation, which can be set to be integrated operation control or chain control.
Parameter
Basic Configuration | YD-60 | YD-120 | YD-150 | YD-200 | YD-300 | YD-500 | ||
Granuality(mm) | 0-40 | |||||||
Capacity(t/h) | 60-80 | 80-120 | 120-150 | 150-200 | 200-350 | 300-500 | ||
Primary Crushing | Feeder | ZSW300×85 | ZSW380×95 | ZSW420×110 | ZSW450×120 | ZSW500×130 | ZSW500×130 | |
Primary Crusher | JC80 | JC96 | JC106 | JC116 | JC126 | JC130 | ||
Secondary Crushing | Vibrating Screen | 3YA1545 | 3YKR1860 | 3YKR2160 | 3YKR2460 | 3YKR2475 | 3YKR3060 | |
Secondary Crusher | medium hard | PFQ1110 | PFQ1310 | PFQ1313 | PFQ1315 | PFQ1320 | PFQ1520 | |
special hard | GPY100-MF | GPY100-EC | GPY100S | GPY200S | GPY200S | GPY300S | ||
Fine Crushing | Vibrating Screen | 3YA1536 | 3YKR1860 | 3YKR2160 | 3YKR2460 | 3YKR2475 | 3YKR2475 | |
Sand Maker | PLS-700 | PLS-850 | PLS-850 | PLS-1000 | PLS-1200 | PLS-1200 | ||
Auxiliary Equipment | conveyor, hydraulic leg, de-ironing separator, electrical apparatus control system, etc. |

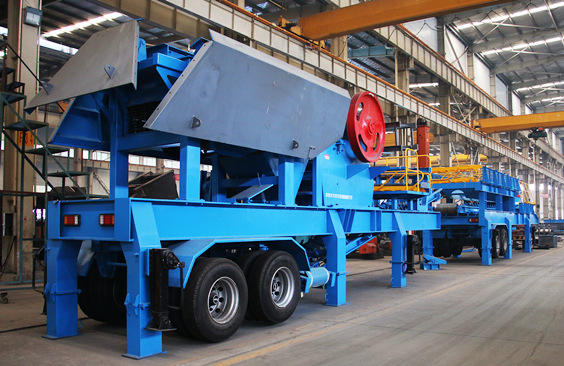

Machine Photo
Customer Cases
400TPH Mobile crushing plant for highway construction in Malaysia
The main equipments: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen.
150t/h Mobile Crushing Plant For Building Roads In Ethiopia
ZSW490*110 vibrating feeder, DHKS4230 jaw crusher, GPY200S cone crusher, 3YKR2160 vibrating screen.
