NS Circular Vibrating Screen

Mesh Size: 2.5-200 (mm)

Processing Capacity: 126-2200 (t/h)

Application Fields: mining, construction material, energy, transportation, chemical industry

Applied Material: all kinds of materials

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

Ns series vibrating screen is the circular vibrating screen manufactured by Luoyang Dahua that introduced advanced technology from abroad. It has multi-decks, and features with characteristic of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, and easy maintenance.

Features

1. Advanced engineering machanics design is applied to ensure adequate strength.

2. Leading computing technology holds a stablely fixed frequency which avoids resonance.

3. Adoption of oil lubrication which is free from fever.

Working Principle

Circular vibrating screen is called single-shaft vibrating screen. After the vibrating screen works, the vibrator drives the screen box to make jumping movement. During this process, the material that is smaller than the sieve will drop to the lower layer, while the large size materials are discharged from outlet under continuously jumping motion and finally complete the classifying process.

Parameter

Model	Size of screening surface	Layer of screen	Mesh size	Amplitude	Capacity	Power
Model	(mm)	Layer of screen	(mm)	(mm)	(t/h)	(kw)
NS8-20	2440×6100	1	2.5-200	9.5	172-1584	22
		2	2.5-200	9.5		22
		3	2.5-200	9.5		2×15
NS10-20	3050×6100	1	2.5-200	9.5	216-1980	2×22
		2	2.5-200	9.5		2×22
		3	2.5-200	9.5		2×30
NS12-24	3660×7320	2	2.5-200	9.5	220-2200	2×37

Remark: The capacity above could be related with mesh size, moisture content and other factors. Specific capacity should be calculated according to local conditions.

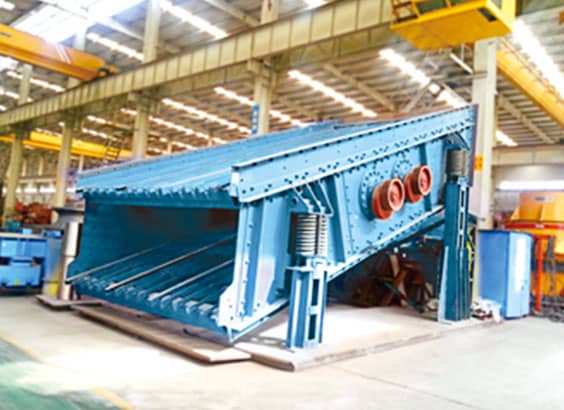

Machine Photo

ns vibrating screen
