PCZ Series Hammer Crusher

Feed size: 750-1500mm

Production capacity: 250-2000t/h

Scope of application: Sand and gravel yard, concrete sand making, dry powder mortar, machine-made sand, power plant desulfurization, quartz sand, etc.

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

PCZ series hammer crusher is mainly used for crushing stone in the building materials industry, road and railway construction, and other industries that use stone. It is suitable for crushing various materials with medium hardness and low hardness. It has the characteristics of unique structure, simple operation mode, high efficiency and energy saving, good product shape, adjustable discharge particle size, and cost saving.

Features

1. It can realize large crushing ratio(generally 10-25, the highest up to 50), convenient adjustment of discharge particle size, and reasonable gradation of finished materials; no grate design, no material blocking;

2. Reliable over-iron and overload protection, the elastic device of the adjustment part has a buffering effect;

3. The weighted rotor improves the reliability and moment of inertia of the rotor, and improves the processing capacity of the crusher;

4. The design of the volute, the ribs on the back, the internal and external impacts are strong, the body is strong, and the impact resistance is not deformed;

5. High chromium compound hammer head, long life, eight hammer holes, four spare;

6. The wear-resistant retaining ring fixed by the circlip pin is adopted, which is easy to replace, reduces labor intensity and increases start-up time;

7. Optional tooling is convenient for replacing the hammer head and hammer shaft.

Working Principle

Hammer crusher mainly relies on impact energy to complete the crushing operation of materials. When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, and the material enters the crusher chamber evenly. The high-speed rotating hammer head rushes to the baffle plate and sieve bar in the frame. At the lower part of the rotor, there is a sieve plate. The particle size of the crushed material smaller than the sieve hole size is discharged through the sieve plate, and the material larger than the sieve hole size is retained in the sieve plate. Continue to be hit and ground by the hammer until it is crushed to the required discharge size and finally discharged out of the machine through the sieve plate.

Parameter

Specification	Rotor (mm)	Feeding port size (mm)	Feed size (mm)	Capacity（t/h）	Powder（kW）
Specification	diameter x length	Feeding port size (mm)	Feed size (mm)	Capacity（t/h）	Powder（kW）
PCZ-1512	Φ1500×1160	1280×1060	≤750	250-320	160×2
PCZ-1615	Φ1660×1550	1580×1350	≤1000	400-600	250×2
PCZ-1620	Φ1660×2010	2080×1280	≤1000	700-1000	400×2
PCZ-1820	Φ1850×2010	2080×1280	≤1000	2800-1200	450×2
PCZ-2125	Φ2150×2490	2600×1680	≤1500	1200-2000	630×2

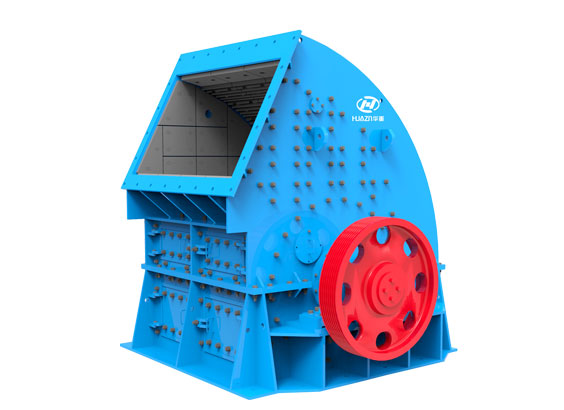

Machine Photo

PCZ Series Hammer Crusher
