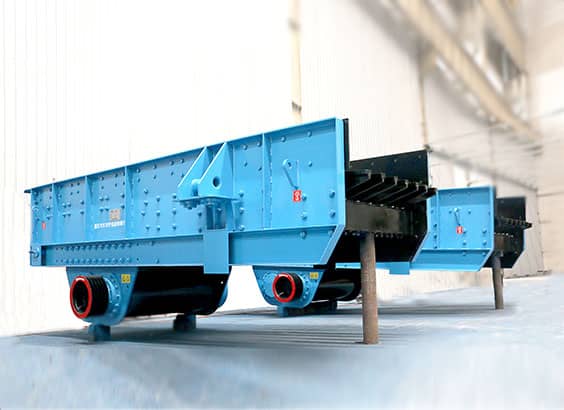

ZSW Series Vibrating Feeder

Max. Feed Size: 500/580/750/600x900x1200/700x1050x1400/800x1200x1600 (mm)

Processing Capacity: 150-1250（t/h）

Application Fields: mining, construction, metallurgy, cement, chemical industry.

Applied Material: ore with compressive strength less than 280 Mpa, rock, slag.

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: [email protected]

Description

ZSW Series Vibrating Feeder is designed based on the principle of exciting force generated by two eccentric shafts. It is mainly used for continuous and even feeding before primary crushing. Besides feeding, at the same time, it works as pre-screening. The pre-setting gap between grizzly bars avoid unnecessary power consumption of the following crushers, which improves the crushing efficiency. ZSW Series Vibrating Feeder is widely used in feeding process of metallurgy, mining industry, construction, chemical industry and construction aggregate .

Features

1. The gap between grizzly bars can be adjusted ,so it has wide application and makes good pres-creening performance.

2. The feeding for the primary crushing can be controlled by adjusting power speed.

3. Stable vibration and low noise makes it safe and reliable when start and stop the machine.

4. It is optional to add the extra high for side plate and extra liner .It is optional to change whole plate and steel plate with drilled-holes instead of grizzly bars in the pre-screening part , so it can be used in different working conditions.

Working Principle

The exciter works as the vibration source of the vibrating feeder which is composed of two eccentric shafts (driving shaft and driven shaft) and gears. The electromotor drives the driving shaft to rotate at high speed, the gear of the driving shaft engages with the driven shaft, and then the two shafts rotate together in the reverse direction that make the trough body moving forward the material continuously. When the material moves along the grizzly bar, the material that is smaller than the screen hole will drop down the gap between grizzly bar, thus realizing classifying.

Parameter

Model	Max. Feed Size	Rotating Speed	Inclination	Capacity	Power
Model	(mm)	(r/min)	(°)	(t/h)	(kw)
ZSW380×95	500	500-800	0-10	~150	11
ZSW420×110	580	500-800	0-10	150～280	15
ZSW490×110	580	500-800	0-10	150～350	18.5
ZSW600×130	750	500-800	0-10	220～560	30
ZSW600×150	900	500-800	0-10	260～620	37
ZSW600×180	1050	500-800	0-10	400 ~ 1000	45
ZSW600×210	1200	500-800	5-10	550 ~ 1250	45
ZSW600×240	1400	500-800	5-10	600 ~ 1500	55
