Stone Crusher
Description
Features
1. To apply special waveform alloy jaw plate, so that the final size is granularity ,high efficiency and long life time of jaw plate.
2. Compared with traditional jaw crusher, the crushing cavity is deeper, which achieves the obvious advantages of big crushing ratio and big capacity.
3. DHKS series jaw crusher applies the strong swing structure of swing jaw and small tooth angle tip, which can be used to crush various hard rock, ore, especially the cobble.
4. Simple discharging adjustment, convenient operation and maintenance, stable running, convenient installation, low operation cost.
Parameter
Specification | Feed Opening Size(mm) | Max. Feed Size(mm) | Discharge Opening Size(mm) | Capacity(t/h) | Power(kW) |
DHKS1610 | 400×250 | 210 | 20-80 | 7-23 | 15 |
DHKS2416 | 600×400 | 340 | 40-100 | 25-64 | 30 |
DHKS3020 | 750×480 | 400 | 50-120 | 60-120 | 55 |
DHKS3624 | 920×600 | 510 | 65-130 | 88-170 | 75 |
DHKS4230 | 1060×750 | 640 | 65-200 | 90-310 | 110 |
DHKS4836 | 1220×910 | 770 | 90-250 | 200-500 | 160 |
DHKS5112 | 1300×300 | 240 | 20-90 | 18-110 | 75 |
DHKS6016 | 1500×400 | 320 | 25-90 | 60-200 | 90 |

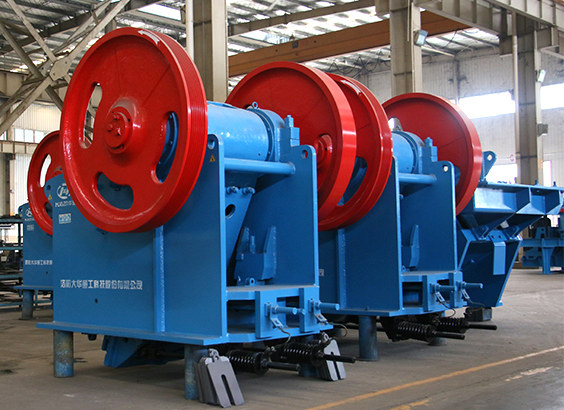

Machine Photo
Customer Cases
2000t/h Limestone Production at Mengzi Country, Yunnan Province
The main equipments: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen.
600 t/h Limestone Production Line at Shanxi Province
The main equipments: ZSW1860 vibrating feeder, JC140 jaw crusher, DHKS6016 jaw crusher, vibrating screen and electrical control system.
