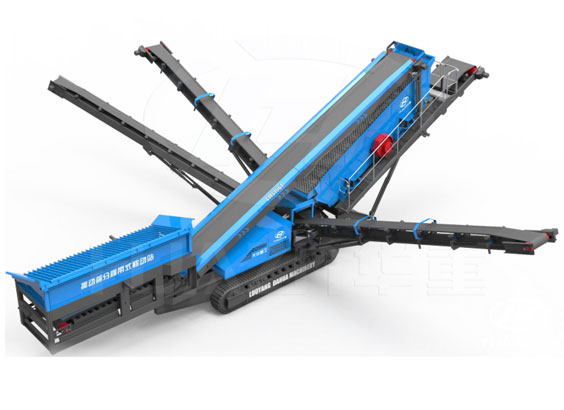

Track-mounted Mobile Screening Plant
Configuration equipment: CMS1460 CMS1560 CMS1860 CMS2060
Processing capacity: 100-350T/H
Power: 15-45kw
Maximum feeding particle size: 110mm
Raw Materials:Screen rock,soils,sand & gravel and c & d materials.
Application:Screening for various quarries and building demolition waste, mining operations and so on.
Description
CMS Series Crawler Type Mobile Screening Plant is used for material and dewatering and desliming operations. The Screening Plant is used for the crushing and screening of medium and hard materials, and the configuration of "feeder + crusher" is mostly used in stone crushing plant and aggregate making plant.
There are two types of mobile screening plant, tire type and crawler type.
Features
1.The frequency and ampl itude of the vibrating screen can be adjusted, which ensures higher screening efciency.
2.The vibrating screen can be selectively equipped with the dust-proof seal ing device.
3.Damping technology is appl ied to avoid horizontal shaking caused by resonance when the machine is started or stopped.
4.Compound rubber springs are uti l ized as vibrating springs, with stable vibration and low noise.
5.It is equipped with the standard intel l igent control ler system.
6.Modular structural component design makes maintenance easy.
7.The vibrating screen with rel iable performance can adjust the screening angle and frequency.
8.The foldable belt conveyors are appl ied, which is very convenient for transportation.
Parameter
| Model | CMS1460 | CMS1560 | CMS1860 | CMS2060 | Remarks | |
| FEED HOPPER | Feed Capacity (t/h) | 100-350 | 100-350 | 100-350 | 100-350 |
Extended Volume: 8.5 m³ |
| Feed Hopper Volume (m³) |
6.2 | 6.2 | 6.2 | 6.2 | ||
| SCREENING EQUIPMENT | Screen Box Size (W mm * L mm) |
1400*6000 | 1500*6000 | 1800*6000 | 2000*6000 |
Hydraulic Driving / Grid Power Driving |
| Mesh Layer Number | 3 | 3 | 3 | 3 | ||
| Max Feed Size (mm) | 110 | 110 | 110 | 110 | ||
| Capacity (t/h) | 260 | 300 | 375 | 450 | ||
| Power (kW) | 15 | 22 | 37 | 45 | ||
| Feed Belt Conveyor | (W mm * L mm * Power kW) | 1200*3700*11 | 1200*3700*11 | 1200*3700*11 | 1200*3700*11 |
Hydraulic Driving / Grid Power Driving |
| MAIN BELT CONVEYOR | (W mm * L mm * Power kW) | 1000*12000*18.5 | 1000*12000*18.5 | 1000*12000*18.5 | 1000*12000*18.5 | |
|
Extra-Large-Sized Material Belt Conveyor |
(W mm * L mm * Power kW) | 500*8400*5.5 | 500*8400*5.5 | 500*8400*5.5 | 500*8400*5.5 | |
| Material Discharging Height (mm) | 4858 | 4858 | 4858 | 4858 | ||
|
Large-Sized Material Belt Conveyor |
(W mm * L mm * Power kW) | 650*10000*7.5 | 650*10000*7.5 | 650*10000*7.5 | 650*10000*7.5 | |
| Material Discharging Height (mm) | 4858 | 4858 | 4858 | 4858 | ||
|
Medium-Sized Material Belt Conveyor |
(W mm * L mm * Power kW) | 650*10000*7.5 | 650*10000*7.5 | 650*10000*7.5 | 650*10000*7.5 | |
| Material Discharging Height (mm) | 4858 | 4858 | 4858 | 4858 | ||
|
Fine Material Belt Conveyor |
(W mm * L mm * Power kW) | 1200*8000*11 | 1200*8000*11 | 1200*8000*11 | 1200*8000*11 | |
| Material Discharging Height (mm) | 4887 | 4887 | 4887 | 4887 | ||
| Self-Dumping Magnetic Separator | Model * Power kW) | RCYQ1000*2.2 | RCYQ1000*2.2 | RCYQ1000*2.2 | RCYQ1000*2.2 | Hydraulic Driving / Grid Power Driving |
| TRACK CHASSIS | Walking Mode | TRACK-MOUNTED | TRACK-MOUNTED | TRACK-MOUNTED | TRACK-MOUNTED |
Hydraulic Driving |
| Walking Speed (km/h) | 0.8 | 0.8 | 0.8 | 0.8 | ||
| Max Climbing Angle | 20° | 20° | 20° | 20° | ||
| INTEGRATED MACHINE |
DRIVING MODE (OPTIONAL AS REQUESTED) |
Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | Hydraulic Driving / Grid Power Driving | |
| Omni-Hydraulic Driving | Omni-Hydraulic Driving | Omni-Hydraulic Driving | Omni-Hydraulic Driving | Optional | ||
| Model | WEICHAI | WEICHAI | WEICHAI | WEICHAI |
Optional: CUMMINS |
|
| Rated Power (kW) | 97 | 97 | 97 | 97 | ||
| Rated Rotation Speed (r/min) |
2100 | 2100 | 2100 | 2100 | ||
| Total Weight (kg) | 38000 | 38200 | 38500 | 38800 | ||
| Working Dimensions L * W * H (mm) |
18578*18554*6480 | 18578*18654*6480 | 18578*18954*6480 | 18578*19154*6480 | ||
| Transport Dimension L * W * H (mm) |
17050*2780 | 17050*2880*3706 | 17050*3180*3706 | 17050*3380*3706 | ||
Structure
Customer Cases
400TPH Mobile crushing plant for highway construction in Malaysia
The main equipments: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen.
150t/h Mobile Crushing Plant For Building Roads In Ethiopia
ZSW490*110 vibrating feeder, DHKS4230 jaw crusher, GPY200S cone crusher, 3YKR2160 vibrating screen.
