ASD Series Jaw Crusher

Max. Feed Size: 630-1220 (mm)

Throughput Capacity: 125-1100 (t/h)

Application Fields: sand and stone production plant, coal mining, concrete mixing plant, dry-mixed mortar, etc.

Applied Material: cobble, granite, basalt, iron ore, limestone, quartz stone, etc.

Get Price Leave Message

PDF View

Tel.: +86-379-62669978E-Mail: [email protected]

Description

ASD Series Jaw Crusher is the new generation of jaw crusher with optimized and developed design, which is based on absorbing the international advanced technology. Compared with the equivalent-sizecrusher, ASD jaw crusher exceeds with better capacity, bigger crushing ratio, lower running cost, as well as the friendly, stable and reliable operation. ASD jaw crusher is the preferred product for primary crushing.

Features

1. Newly V-type of crushing chamber: the crushing capacity will be highly increased, the product size will be finer and crushing performance will be better.

2. The CSS can be adjusted to even smaller, which makes the product size finer.

3. The discharge opening shall be adjusted by the hydraulic cylinder together with wedges, which will be operated conveniently and efficiently.

4. In order to meet the different needs there are two different installation design for motor: it can be integrated installation with the crusher frame or installed on the ground.

5. The integrated structure of main bearing housing and swing jaw makes the transportation more easier and the installation more convenient.

6. The optimal moving trail and the counterweight balance reduces the dynamic load, vibration amplitude and noise, and stable operation.

7. Smart structure,stable and reliable,easy and convenient maintenance.

8. The toggle plate and the swing jaw plate have the lateral deviation function.

9. Compared with the normal type of crushing chamber, the new type of crushing chamber of ASD jaw crusher will make the throughput capacity increased by 15~20%.

Parameter

Model	Feed Opening (mm)	CSS(mm) / Throughput Capacity(t/h)														Power (kw)
Model	Feed Opening (mm)	50	65	75	90	100	115	125	150	180	200	220	250	280	300	Power (kw)
ASD3625	910×630	125	145	160	180	195	215	225	225	290	320					90
ASD4230	1070×760		195	215	245	260	285	305	345	390	420	450				110
ASD4836	1220×910			280	310	330	365	385	440	495	535	570	620			160
ASD5442	1370×1070				365	395	440	470	535	615	670	720	800	880		185
ASD6048	1520×1220						495	530	620	720	785	850	950	1050	1110	220

Remarks:
1.The capacity listed from the table is the corresponding parameters to crush the rock with the loose density of 1.6t/m³ (a feed material with an average specific gravity of 2.7t/m³).
2.The processing capacity shall be changed according to the different materials and different feeding.
3.The CSS refers to Closed Side Setting. The measuring method will be decided by the tooth profile of the jaw plates.
4.The processing capacity and the product size shall be changed according to the different tooth profile.

Machine Photo

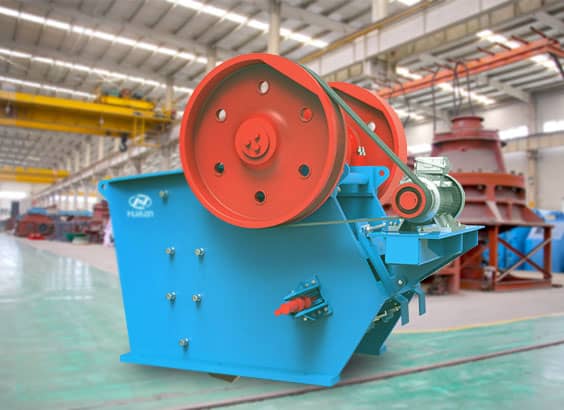

asd jaw crusher 1
