C Series Jaw Crusher
Max. Feed Size: 680-1200 (mm)
Processing Capacity: 185-1300 (t/h)
Application Fields: metallurgy, mining, chemical, cement, construction, etc
Applied Material: limestone, dolomite, phosphate ore.
Description
C Series Jaw Crushers are new kind of products manufactured by our company, cooperating with the technology of ALTAIRAC France. They are jaw crushers with high throughput, low energy consumption, reliable structure and easy maintenance,being the preferred primary crushers for various rocks.
Features
1. C series jaw crusher has the features of excellent motion characteristics, special chamber design which saves more than 10% energy consumption and has more than 15% bigger throughput.
2. Unique crushing chamber design of C jaw crusher makes the availability of jaw plate much higher. Jaw plate can be switched four times that achieves evenly attrition. This advances the material availability and prolongs service life.
3. The teeth on jaw plate in crushing chamber faces to aces (swing jaw plate and fixed jaw plate), which is good for crushing hard materials.
4. The structure design of adjustable transmission angle makes higher capacity in the same discharge outlet.
5. Fixed jaw plate and swing jaw plate can be changed for each other. This design will save user's spare consuption and the assembly is more convenient.
6. The hydraulic adjustment of double-jack for discharge outlet is convenient and labor saving.
7. Swing jaw and main frame can be disassembled easily which is convenient for transportation.
Parameter
| Model | Inlet Size(mm) | Discharge Gap(mm) | Capacity(t/h) | Power(kw) |
| C1008 | 1020×800 | 65-250 | 185-500 | 110 |
| C1210 | 1160×1050 | 75-275 | 270-810 | 132 |
| C1412 | 1400×1200 | 95-300 | 390-950 | 185 |
| C1615 | 1610×1400 | 115-300 | 470-1150 | 220 |
| C1815 | 1800×1500 | 125-325 | 630-1300 | 355 |

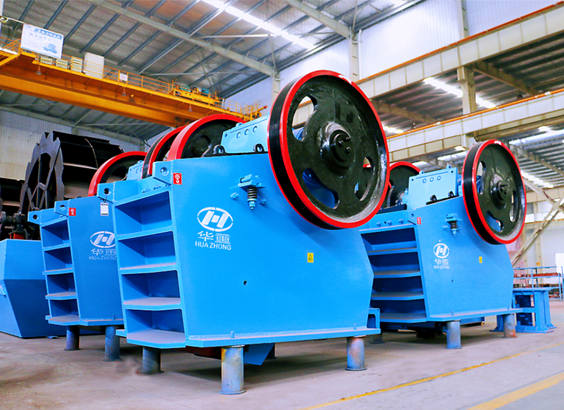

Machine Photo
Customer Cases
East Timor Road Construction Project
The main equipment: ZSW490X110 vibrating feeder, PFQ1313 impact crusher, C1008Ⅱ jaw crusher, 3YK2460 vibrating screen、DXS3.2A sand washer
This cobble crushing production line is customized designed by in Indonesia.
The main equipment: ZSW vibrating feeder, C jaw crusher, GPY cone crusher and 2YK vibrating screen.
