DHKS Series Jaw Crusher
Description
Features
1. To apply special waveform alloy jaw plate, so that the final size is granularity ,high efficiency and long life time of jaw plate.
2. Compared with traditional jaw crusher, the crushing cavity is deeper, which achieves the obvious advantages of big crushing ratio and big capacity.
3. DHKS series jaw crusher applies the strong swing structure of swing jaw and small tooth angle tip, which can be used to crush various hard rock, ore, especially the cobble.
4. Simple discharging adjustment, convenient operation and maintenance, stable running, convenient installation, low operation cost.
Parameter
Specification | Feed Opening Size(mm) | Max. Feed Size(mm) | Discharge Opening Size(mm) | Capacity(t/h) | Power(kW) |
DHKS1610 | 400×250 | 210 | 20-80 | 7-23 | 15 |
DHKS2416 | 600×400 | 340 | 40-100 | 25-64 | 30 |
DHKS3020 | 750×480 | 400 | 50-120 | 60-120 | 55 |
DHKS3624 | 920×600 | 510 | 65-130 | 88-170 | 75 |
DHKS4230 | 1060×750 | 640 | 65-200 | 90-310 | 110 |
DHKS4836 | 1220×910 | 770 | 90-250 | 200-500 | 160 |
DHKS5112 | 1300×300 | 240 | 20-90 | 18-110 | 75 |
DHKS6016 | 1500×400 | 320 | 25-90 | 60-200 | 90 |

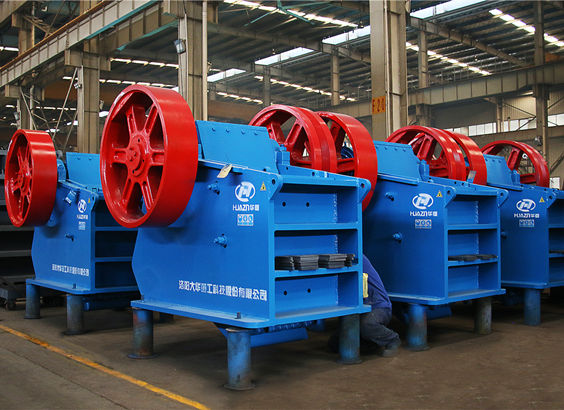

Machine Photo
Customer Cases
National Highway Construction Project in Fiji.
The main equipment: DHKS4230 jaw crusher, PFQ1315 impact crusher, PLS sand making machine, 3YKR2460 vibrating screen, ZSW 490 X 110 grizzly bar vibrating feeder.
Highway Project in Aksu, Ethiopia.
The main equipment: DHKS4230 jaw crusher, PFQ1310 impact crusher, 3YKR2160 vibrating screen, belt conveyor, ZSW420X110 grizzly bar vibrating feeder.
