Aggregate Crusher

Feeding Size: ≤1360mm

Processing Capacity: 10-900t/h

Output Size: 0-40mm for 200 kinds of stones

Model: small, medium and large models are in stock available

Processing Materials: granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

Aggregate crusher is a kind of most widely used crushing equipment for processing kinds of stones. With reliable performance, it is well received by customers from Kenya, Nigeria, Zambia, South Africa, Namibia, Rwanda, etc.

The crushed stones with different particle size, usually 0-40mm, can be used in construction, building, road, highway and other industries.

Application of Aggregate Crusher

1.For granite, quarry stones, rocks, aggregate, basalt, limestone, gold ore, iron ore, etc.

2.Common final output size:0-10mm, 10-20mm, 20-30mm, 30-40mm, etc.

3.Hot sale capacity:5-20t/h, 60-100t/h, 150-200t/h, 200-300t/h, 300-400t/h, etc.

Aggregate crushers are used in mining, quarrying and recycling operations. Several types of crushers can perform this task including jaw crushers, gyratory crushers, impact crusher and cone crushers.

Features

1.Factory-direct sale, guaranteed quality with competitive price, saving costs.

2.High crushing efficiency, adjustable final size, reliable performance, easy maintenance.

3.High quality spare parts, long lifetime, full service system.

Working Principle

When aggregate crusher works, electrical motor drives the belt wheel to make the swing jaw move following the specific track by eccentric shaft. After the materials enter into the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.

Aggregate crusher is used for crushing over 100 kinds of soft and hard stones and rocks. It can be used for primary seconday fine crushing of minerals. The crushed stones with required particle size can be used in many industries.

Parameter

Specification	Feed Opening Size(mm)	Max. Feed Size(mm)	Discharge Opening Size(mm)	Capacity(t/h)	Power(kW)
DHKS1610	400×250	210	20-80	7-23	15
DHKS2416	600×400	340	40-100	25-64	30
DHKS3020	750×480	400	50-120	60-120	55
DHKS3624	920×600	510	65-130	88-170	75
DHKS4230	1060×750	640	65-200	90-310	110
DHKS4836	1220×910	770	90-250	200-500	160
DHKS4816	1220×400	320	25-90	18-80	55
DHKS5112	1300×300	240	20-90	18-110	75
DHKS6016	1500×400	320	25-90	60-200	90

Machine Photo

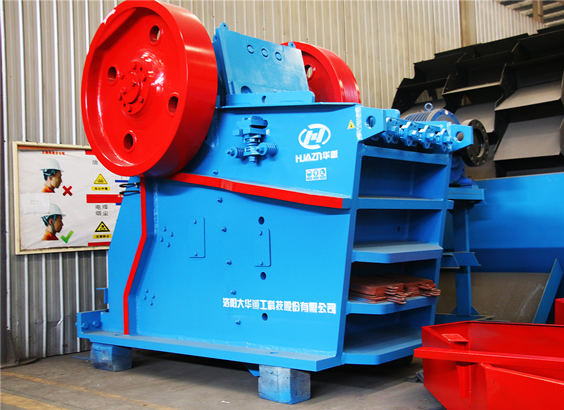

aggregate jaw crusher

aggregate impact crusher

aggregate cone crusher

aggregate Crushers

Customer Cases

800t/h Construction Aggregates Production Line in Malaysia

Main Equipment: C1815 jaw crusher, GPY 500S fine cone crusher, GPY 300 fine cone crusher, 2YK52460 horizontal vibrating screen, ZSW2160 grizzly bar vibrating feeder.

250t/h construction sand aggregates production line in Indonesia

Main Equipment: ZSW490*110 grizzly bar feeder，C1008 jaw crusher，GPY cone crusher，HPY cone crusher，2YKR1545 vibrating screen、2YKR2160 vibrating screen.
