Limestone Crusher

Processing Capacity: 50-1200TPH

Max. Feeding Size:300-700mm

Application Fields: cement, construction, chemistry, highway and railway.

Applied Materials: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin,etc.

Customized Service: Small, medium and large models can be customized to meet your needs.

Get Price Leave Message

Tel.: +86-379-62669978E-Mail: [email protected]

Description

The best selling limestone crusher includes jaw crusher, cone crusher, impact crusher, mobile crusher etc. We also have other crusher types for choice. Make customized solution for you.

Limestone coarse crusher: jaw crusher

The limestone jaw crusher is usually used as the first rock crusher, and it is suited for medium-size crushing of ore and bulk materials with a compressive strength of not more than 320Mpa. Jaw crusher is divided into coarse crushing and fine crushing. The feeding size is 125mm~750mm. It often forms a complete sandstone production line together with cone crusher, impact crusher and sand making machine.

Limestone medium crushing equipment recommended: impact crusher & cone crusher.

The impact crusher can granite, limestone, concrete, and the like coarse materials with a side length of less than 500 mm and a compressive strength of less than 350 MPa.

【Impact crusher VS cone crusher】

Impact crusher has a lower price, uniform discharge, less needle-like crushed product.

The cone crusher is slightly more expensive, but the wearing parts have a long life. In the long run, the cone crusher is more durable.

【Impact crusher VS hammer crusher】

The impact crusher has a larger crushing ratio and can more fully utilize the high-speed impact energy of the entire rotor.

The impact crusher is easy to wear, which makes it limited in the application of hard material crushing.

Mobile Limestone crushing plant

Main Equipment: mobile jaw crusher + mobile impact crusher

Flexible, small space, lower invest, easy to construct; intelligent design, secure and convenient one-button operation.

Features

1.Factory-direct sale, guaranteed quality with competitive price, saving costs.

2.High crushing efficiency, adjustable final size, reliable performance, easy maintenance.

3.High quality spare parts, long lifetime, full service system.

Parameter

Model	Max. Feed Size(mm)		Discharge Size (mm)	Capacity (t/h)	Power (kw)
Model	<150MPa	<250MPa	Discharge Size (mm)	Capacity (t/h)	Power (kw)
PFQ1108	300	150	30	50~100	75
PFQ1110	400	200	35	80~150	110
PFQ1310	400	200	40	140~200	160
PFQ1313	400	250	40	180~260	200
PFQ1315	400	300	40	200~300	250
PFQ1320	400	300	40	300~400	2×160
PFQ1520	500	400	40	350~550	2×250
PFQ1623	700	400	40	600~780	2×355
PFQ1823	700	400	40	650~1000	2×400

Remark: The production capacity listed in the table is based on limestone with the loose density 1.6/m³. The feed should be moderate. If the feed is too big, it will reduce the capacity and increase the wear.

Structure

PFQ impact crusher

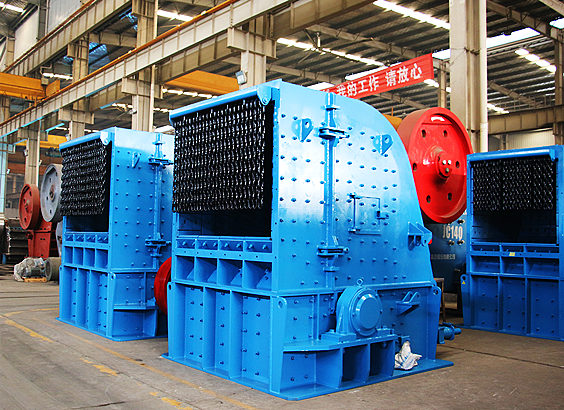

Machine Photo

Customer Cases

Road Reconstruction Project in East Timor

The main equipment: ZSW490×110 feeder, C1008 jaw crusher, PFQ1313B impact crusher, 3YA2460 vibrating screen、DXS3.2A sand washer and complete set of automatic control system.

2000t/h Limestone Production at Mengzi Country, Yunnan Province.

The main equipment: ZSW1860 vibrating screen, JC140 jaw crusher, PFQ1520 impact crusher, 3YK3280 vibrating screen, PFL1750 complex crusher, 2YK3073 vibrating screen
